Hirth Gear Coupling by Curtis Yun
- 10 views
This model is hosted on MyMiniFactory. Files, images and license details belong to the original creator.
View on MyMiniFactory ↗Description

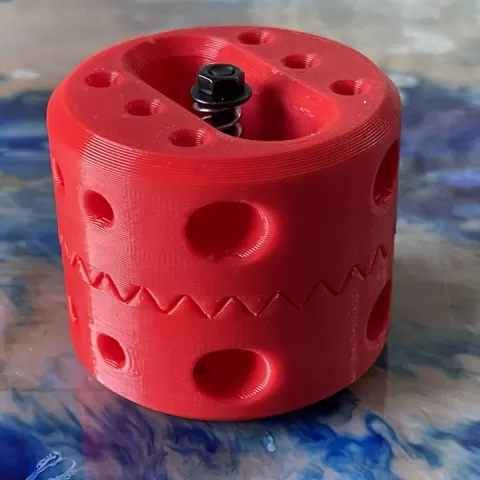

Designed this with no idea that it was called a hirth gear/joint. Meant to accept 3/8" rods as a component of an articulating arm assembly. Holes normal to the 3/8" bore accept an arbitrarily dimensioned M3 brass insert that I bought online. Diameter of those holes measure 4.6 mm. Joint can be compressed via a spring/M4 nut+bolt assembly through the center bore of the joint, see image. Adjust tension accordingly. Printed on its flat face, the only areas requiring support are the center bore and possibly the 3/8" bores depending on your printer's capabilities. | Download free and paid 3D printable STL files
