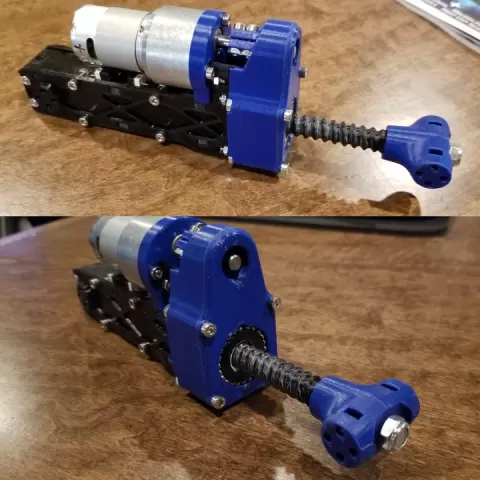

Ball Screw Linear Actuator by Jeff Underly
- 12 views
This model is hosted on MyMiniFactory. Files, images and license details belong to the original creator.
View on MyMiniFactory ↗Description
Working on a new project requiring (12) ballscrew actuators prompted R&D'ing cost effective solution.This led to many months of developing a 3D printed ball screw with an encoder and hardware cost of 35$/each. Multiple configurations posted for different travel lengths. Travel Configurations:125-200mm150-250mm175-300mm200-350mm Specifications:Designed around 0.125" (3.175mm) ball bearingScrew Pitch Diameter: 12mmScrew Pitch: 4.5mmActuation Speed: 23.1mm/sEncoder: 62.66667P/mmGearmotor: No Load 560RPM, 0.5A (See attached observations)Force: 105N @ 1.0A (assuming 75%e)Force: 367N @ 2.4A (assuming 75%e) I have not tested linear force simply because I don't have appropriate hardware to do so. At 1.5A, I am unable (or unwilling) to stop the actuator by hand in compression. Further testing will happen as I utilize the design. Example of encoder/pid positioning:https://www.youtube.com/watch?v=KTAoLJEhHUw Further Details: https://www.thingiverse.com/thing:3770810 | Download free and paid 3D printable STL files
