3" Single Track Shelf Bracket

Description

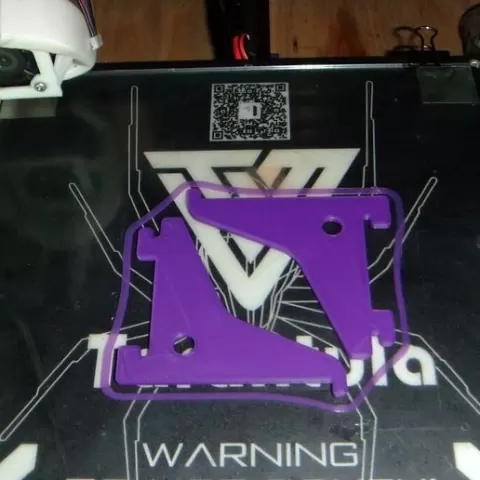

The original model for this came across my view at the exact time I was pondering the best way to display my massive Skylanders collection (the figures in the photo are only a portion of my entire collection!). I immediately called up the local hardware store and had them order me some single track. I had already printed a set by the time the track came in. Sadly, the tabs on the original models were too far apart and the length of each tab was too long to allow the bracket to go into the slot on the track. Additionally, the original was about 0.2mm too thick to go into the slot. So.... I imported the model into Sketchup, reduced the thickness by 0.2mm and modified the tabs to fit the track I had - Knape & Vogt 80 BR 48 - and while I was at it, I shrunk the bracket down to fit a standard 1x3 board. This is the result. Thank You AndresMF For Such a Useful Design! Another Sketchup Model - Debunking the Myth that Sketchup is Useless in 3D Printing
