Headlight cover Ford Focus MK2 (facelift) - Digital Shadow

Description

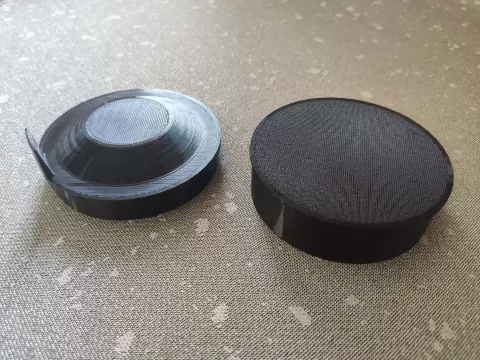

Headlight cover (low beam headlights/high beam headlights)FIN: 1521246Hello, friends. These are the covers I developed for the low and high beam headlights of the Ford Focus 2 mk2 facelift (restyling). I created 2 models: one exactly replicates the original (requires the use of supports), and the second is optimized for simplified FDM printing. You can see the difference in the photo. Measurements were taken from the original covers using a caliper and a ruler. Developed the model in the Compas 3D program. Screenshots of the model were made in Blender.Attention! The seats for the covers on different headlights have different wear and may vary slightly in diameter, and also different plastics have different shrinkage. If for some reason the covers do not fit sufficiently rigidly, then you can slightly change the scale of the model when printing.Thank you very much for your attention!Print options I used:Filament name:Nekrasov polymer (the cheapest filament I had)Filament type:PETGColor:blackNozzle diameter:0.4mmLayer height:0.2 mmFill Density:20%Supports:yes/no (look at description)Nozzle temperature:245 degrees CelsiusTable temperature:80 degrees CelsiusFirst layer printing speed:15 mm/sPrint speed:60mm/sSupports printing speed:30mm/sAirflow speed:40%
