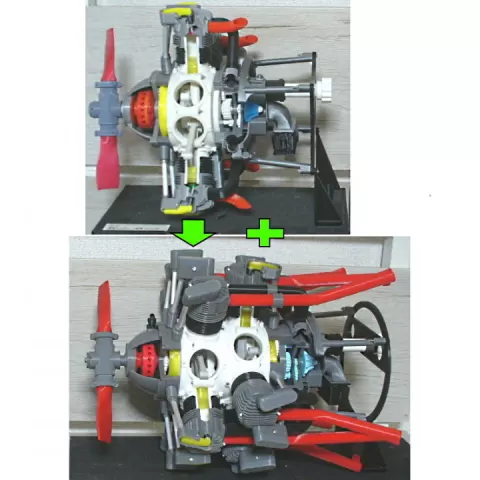

Radial Engine, 7-Cylinder, Optional Parts Kit (3) to 14-Cylinder by Motoo Kondo

Description

This kit is for those who have downloaded the following models[Original Model]https://www.myminifactory.com/object/3d-print-radial-engine-7-cylinders-cutaway-74978[Optional Parts Kit]https://www.myminifactory.com/object/3d-print-radial-engine-7-cylinder-optional-parts-kit-111942https://www.myminifactory.com/object/3d-print-radial-engine-7-cylinder-optional-parts-kit-2-143219 A. This kit consists of new designed files to modified to 14 cylinder type: You can modified the 14 Cylinder Engine to combind new files and original files. Also you can make 7-Cylinder and 14-Cylinder Engine both. [Major Parts of New Desingn] 1. Center Section ---- Crankshaft, Crankcase and Tappet Housing 2. Cylinder Assembly ---- Cylinder Head, Rocker Parts 3. Final Assembly ---- Intake and Exhaust Piping [Outline of Original Parts can be used] 1. Front Section (Reduction) 2. Rod Assembly but add 1 set 3. Rear Section 4. Accessories B. Assembly Manual (PDF format, total 32 pages)The detail assembly manual including "Parts-List", "After printing treatment" and "Assembly procedure" are prepared based on "Standard Skill (Filing, Drilling, Tapping and painting)".The manual is including the all procedures to assemble with all parts. B. Purchase Parts Information (Changed); -Metal Bearing - Quantity changed 6900ZZ (+1), 689ZZ (+1) -Screws M1.4, M2 and M3 - Quantity changed D. STL file STL files of this kit are 36 items (Total stl files are 92 items including original parts. "14-" is added to the beginning of…
