RAK4631 Solar Node for Meshtastic
- 12 views
This model is hosted on Cults3D. Files, images and license details belong to the original creator.
View on Cults3D ↗Description

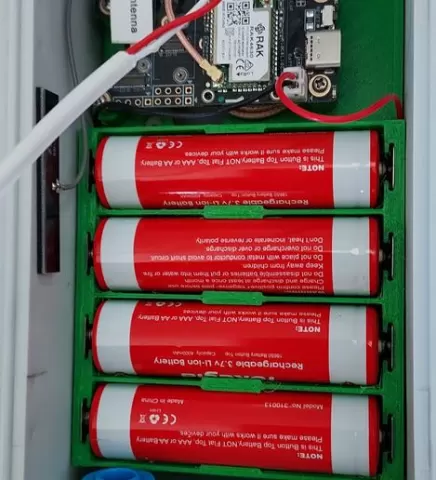

I just wanted a simple board for mounting 18650 batteries and the RAK board, so I designed one. BOM: The box https://amzn.to/3CRd7Qf the terminals: https://amzn.to/4fNxA6X the n connector: https://amzn.to/3VbZdOQ (it's 6 inches long, so i curled it up. if you find a shorter one, like 3 inches go with that) breather plug: https://amzn.to/418XrBP The RAK starter kit: https://amzn.to/417yC9v USB-C 90 deg: https://amzn.to/3ZrkkiH (I leave one of these on the board, for firmware upgrades. avoids having to remove the board) Here is the antenna that I got, but you will want to make you own design choice based on node location: https://amzn.to/4eM3ks5 P.S. These are affiliate links, they don't cost you anymore to use, but I get a little back for my time and effort I put into this project. So thanks in advance for using them.
About this model
RAK4631 Solar Node for Meshtastic is a free 3D model in the Other category, shared by the Cults3D community. You can download it for 3D printing and reuse it in your own projects under the terms of its original license.
File formats
- STL — The most common mesh format for 3D printing — ready to slice and print on almost any printer.
The files for this model are hosted on Cults3D. Use the button above to open the original page and download it.
