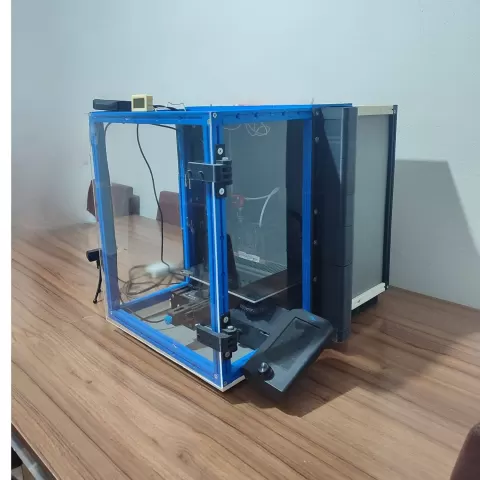

Ender3v2 builtin enclosure - DMRHN

Description

You can either make all the frames from plexiglass or use corrugated plastic plates (thickness 2-2.5mm),which is a more economical solution.Advantages*Lightweight*Mounted on an internal chassis*Internal space is close to the minimum possible volume*No transportation problem*Motherboard and power supply can reach clean and cold air (not like printer tent)*Ambient temperature of up to 55 degrees occurs in the middle of the internal volume.*Prevents distortions caused by ambient temperatures*comfortable viewing with front transparent plexiglass*If the correct program(gcodes) is written, it can be used as a filament dryer (I haven't tried it yet)Parts detail and quantityThe end of part name x... meaning is how many part that you need.The parts were designed in the position they should be printed. You don't need to change direction.I printed all the parts with Ender3v2ABS parameters0,2mm layer height%25 infill,50mm/s,240°C degree hotend,100°C bed heat8mm brimno cooling fanback bottom cover x3 (16g) (2h9m) (not need support) 3 pieceback profile rail nut x2 (5g) (36m) (need support) 2 pieceback-side bottom cover x2 (12g) (1h39m)(not need support) 2 piececorner 2S x4 (6g) (55m)(need support) 4 piececorner 3S x12 (7g) (1h6m)(need support) 12 piecefront bottom cover x3 (14g) (2h5m)(not need support) 3 piecefront profile rail nut x2 (4g) (30m)(not need support) 2 piecefront side bottom cover x2 (16g) (2h25m)(not need support) 2 piecehinge-1 x2(9g) (1h17m)(need support) 2…
