Plumbing - Sink Rough In bracket

Description

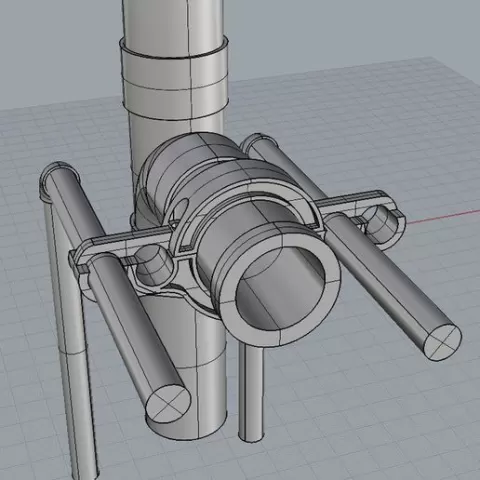

I am a plumber by trade. I have always had solutions to problems, but no company has ever made such a device that I needed for said problem. This bracket is for holding two 1/2" copper, pex, or cpvc pipes to a 1 1/2" pvc or abs stub out for a vanity, kitchen, or other sink drain. This bracket I design is mostly used for my island kitchen sinks where the pipes come from the base of the cabinet in pex and then I have to secure the pipes some how. I prefer not to drill brackets into brand new cabinets. This solves the problem by clamping on to the drain pipe and allow me to snap up to 4 pipes into the hold to secure them. You can use it as pictured, or vertical to support pipes going up through the wall. 2 #10 x 1" sheet metal screws are required to secure the two sides together. I do not take responsibility for anything you do with this print. Print at whatever layer height works best Use supports and print with the flat surfaces down.
