7inch LED Motorcycle Headlight Bucket

Description

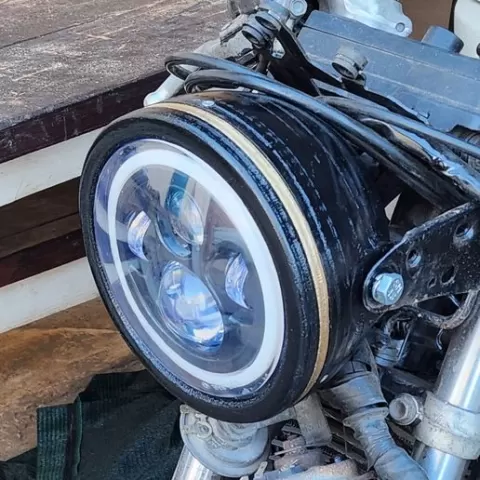

This headlight bucket is meant to house the universal LED headlights as per the model photo. It is similar to the stock 7 inch headlight buckets found on "naked" motorcycles. Although it has a similar hole at the back to insert the wiring, it has not been tested on a sealed / semi-sealed light, which probably won't fit either. If there is enough interest I can get hold of such a light unit and design the "holding" rings accordingly. On the LED unit I had there were 3 possible mounting tabs on the back, pointing backward, which I cut off, to simplify the model a bit. In the front clamping trim ring, I paused the print just before the six captive nut holes were covered over, and inserted M4 nylock nuts, (with the nylon facing "outward"), before resuming the print. The rear clamping ring has notches so that the light cab still be oriented upright correctly. The 3 thick tabs on it's rear are for securing it in the bucket, so the one tab must be located at the top. The bucket is mounted to the headlight brackets, using 2 M10 bolts. On the inside of the bucket, are 2 recesses for either the head of the bolt or a nut, depending on which way you want to orient the bolt. So in essence the mounting of this light is very similar to mountain stock headlight unit.
