Outer Radius Gauge
- 20 views
This model is hosted on Cults3D. Files, images and license details belong to the original creator.
View on Cults3D ↗Description

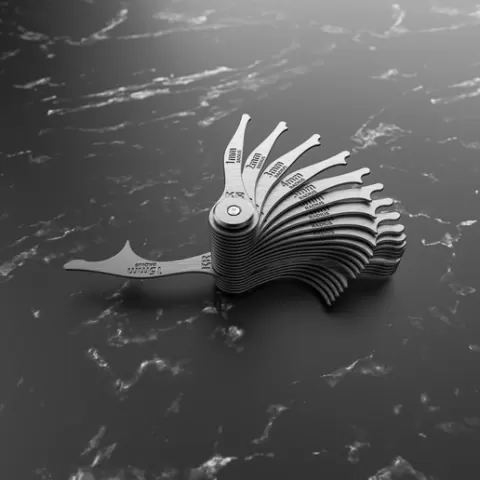

With this tool, you can measure the radius of anything between 1 and 20 millimeters, which is typically impossible using a caliper. It is very helpful for CAD design and other applications. You will need one M3x10 screw. I've also included a pre-supported version so you can print it right away! (STLs and Chitubox project so you can rearrange the models if needed). This version only includes the Outer Radius Gauge. Inner Radius Gauge: link (https://cults3d.com/en/3d-model/tool/inner-radius-gauge) Inner & Outer Kit (sale): link (https://cults3d.com/en/3d-model/tool/radius-gauge-inner-outer-kit) .5mm Extension pack: link (https://cults3d.com/en/3d-model/tool/radius-gauge-5-mm-extension-pack-inner-outer-7a9136132a11ef342a42)
About this model
Outer Radius Gauge is a free 3D model in the Other category, shared by the Cults3D community. You can download it for 3D printing and reuse it in your own projects under the terms of its original license.
File formats
- STL — The most common mesh format for 3D printing — ready to slice and print on almost any printer.
The files for this model are hosted on Cults3D. Use the button above to open the original page and download it.
