RFID alarm system
- 11 views
This model is hosted on Cults3D. Files, images and license details belong to the original creator.
View on Cults3D ↗Description

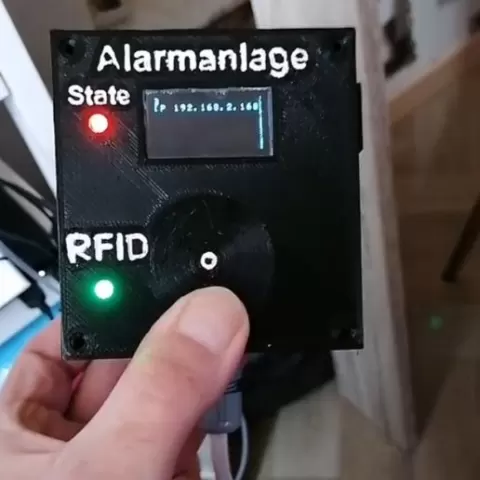

This is the door unit of my alarm system which includes a NFC/RFID reader, an Oled display, a Si70xx temperature and humidity sensor, a PIR motion sensor, 2 WS2812b RGB LED and the heart the ESP8266 and of course a power supply from 230V to 5V 4A, in addition 2 USB A ports are integrated for charging devices. The whole runs with ESPeasy and Fhem as a server now 3 months stable. The housing is built so that it is attached to the window next to the door. The gland on the bottom is for an M12 cable gland
