UV meter 2
- 12 views
This model is hosted on Cults3D. Files, images and license details belong to the original creator.
View on Cults3D ↗Description

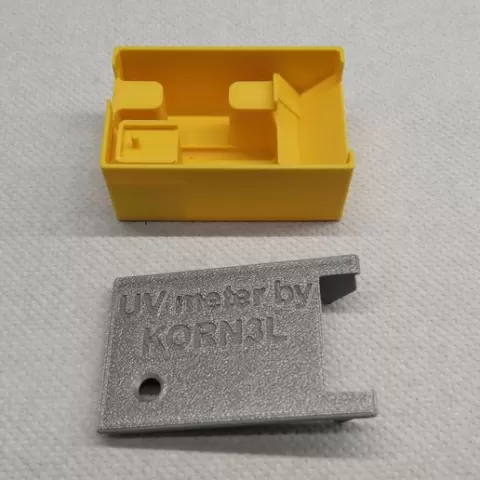

The design of the solarium UV measuring box I made for my girlfriend not so long ago is not optimal, because the display brightness is not very high, making it difficult to read under the solarium’s fluorescent tubes. Therefore, I designed another enclosure for the already available electronic components, in which the display is recessed into the interior of the box, keeping it in the shade and thus improving its visibility. The wiring and program code remain unchanged compared to the previous model. As a small note, I placed the legs of the individual electronic components into sockets, and connected the legs of those according to the circuit diagram.
About this model
UV meter 2 is a free 3D model in the Other category, shared by the Cults3D community. You can download it for 3D printing and reuse it in your own projects under the terms of its original license.
File formats
- STL — The most common mesh format for 3D printing — ready to slice and print on almost any printer.
The files for this model are hosted on Cults3D. Use the button above to open the original page and download it.
