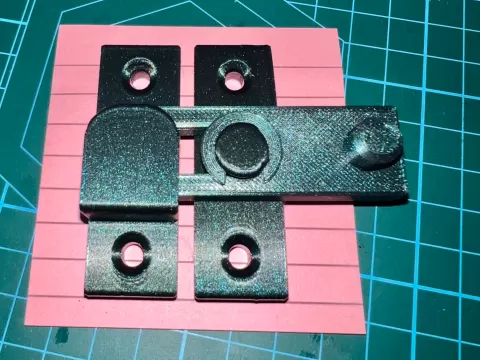

Sliding Door Latch - AliSev
- 18 views
This model is hosted on Creality Cloud. Files, images and license details belong to the original creator.
View on Creality Cloud ↗Description
Created by Aiirik @Aiirik_381234Perfect for what I need! Some moving parts and weather working on my small simple door, so this sliding lock is just PERFECT to allow for some of that weathering! : ) ---> I added a Locking Ring, so when not engaged does not comes apart!I am using PETG, 3 walls, 4 top/bottom, 20% Honeycomb and needs some supports.Dimensions: Total Latch: 65mm wide (plus space in between the latch parts) x 60mm high and raised by 24mm (with the knob) Latch Lock: 20 x 60 x 19.5mm (base is 8mm) Latch Plate: 20 x 60 x 19.7mm (base is 8mm) Latch Slide: 20 x 65 x 24mm (base is 8mm) Locking Ring: OD 17mm x 1.2mm (*The latch is customizable in Fusion by the maker)Cheers! ; )
About this model
Sliding Door Latch - AliSev is a free 3D model in the Other category, shared by the Creality Cloud community. You can download it for 3D printing and reuse it in your own projects under the terms of its original license.
