Sea-Doo 156mm Jet Pump Wear Ring GTX/GTS/GTI OEM WEAR RING 267000104, 267000419, 267000309, 267000374

Description

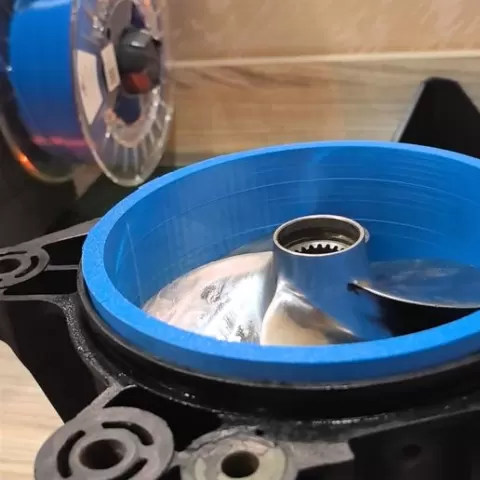

Sea-Doo 156 mm Jet Pump Wear Ring This is a precise 3D model of a Sea-Doo 156 mm jet pump wear ring, designed for reliable fit and functional performance. The model is optimized for FDM 3D printing using ABS material. The part was created as a replacement for the original SR-HS-156-001 wear ring and follows the same dimensions as the factory component. Tested for over 50 hours with no issues. The original SR-HS-156-001 wear ring is made from stainless steel and is designed to maintain jet pump efficiency while reducing cavitation. Important: Due to differences in 3D printers, calibration, and material behavior, slight dimensional variations may occur after printing. Minor sanding, fitting, or post-processing may be required to achieve a perfect fit. ABS material shrinks during printing, and depending on your printer and settings, dimensional changes of approximately 0.6 mm to 1 mm may occur. If necessary, you can slightly adjust or scale the model to compensate for these variations. Dimensions: Inner diameter: 156 mm Outer diameter: 170.9 mm Height: 80 mm Print settings: Material: ABS Layer height: 0.24 mm Infill: 100% Nozzle size: 0.4 mm (recommended) Heated bed temperature: 90–110°C This model has been successfully tested in real operating conditions and has demonstrated reliable performance.
