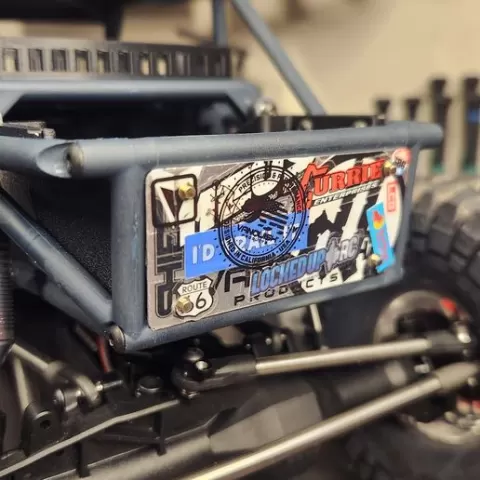

H10 Optic Tailgate template
- 12 views
This model is hosted on Cults3D. Files, images and license details belong to the original creator.
View on Cults3D ↗Description
This is a template to make and install a custom aluminum tailgate on your Vanquish Products H10 Optic. The printed template can be used and a drill fixture to drill 4 1.5mm holes into the H10 cage, and to cut an drill an aluminum panel to install on the rear of the cage. Mount holes in the chassis should be 1.5mm. Holes in the panel you make should be 2mm. Install the panel to the cage using 4 m2 screws. I also included a PDF for a paper template for the tailgate. You can print this if you prefer working from a paper template. Confirm the printed dimension (66mm) matches the actual size (may require scaling to match).
