Ludo game set - Vuki Production

Description

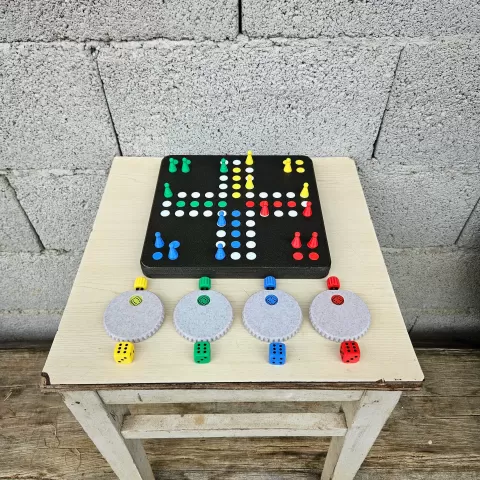

LUDO GAME SETLudo is a strategy board game for two to four players, in which the players race their four figures from start to finish according to the rolls of a single die. I created this portable ludo game set where you can play with stopwatch dice or normal dice. The dimensions of the board are 250 x 250 mm and it can fit in your bag so you can always have it with you and play with your friends.My 3D printing settings are also included in the download file.Included are 13 parts: ▪ Base topper ▪ Bottom ▪ Dice ▪ Figure ▪ Figure field ▪ Pin ▪ Cap ▪ Stopwatch dice parts: - Frame topper - Bottom frame - Button - Wheel - Spring - Trigger Assembly and painting instructions: ▪ Glue the Figure fields on the Base topper (you need to print 36 white Figure fields and 9 of them in each color) ▪ Connect the Base topper and Bottom by gluing Pins and Caps ▪ Dots on the Dice I painted with a black marker ▪ Assembly of the Stopwatch dice you can find at link below: - https://youtu.be/jexxjWwHyAk3D printing settings: ▪ Slicer: Bambu Studio ▪ 3D printer: Bambu Lab X1-Carbon ▪ Material: PLA ▪ Nozzle temperature: 220 °C ▪ Bed temperature: 60 °C ▪ Resolution: 0.2, 0.16 and 0.12 mm (depends on your preferences) ▪ Walls: 0.8 mm ▪ Top/Bottom thickness: 4-5 layers ▪ Infill: 15-20% (only for the Dice 100%) ▪ Speed: 50-300 mm/s (depends on your 3D printer) ▪ Cooling: 100% ▪ Adhesion: brim or none ▪ Supports: / ▪ Amount of material (total): 548g ▪ Printing time (total)…
