Camera holder (Nebula) for Ender 3v3 - Jack Mook

Description

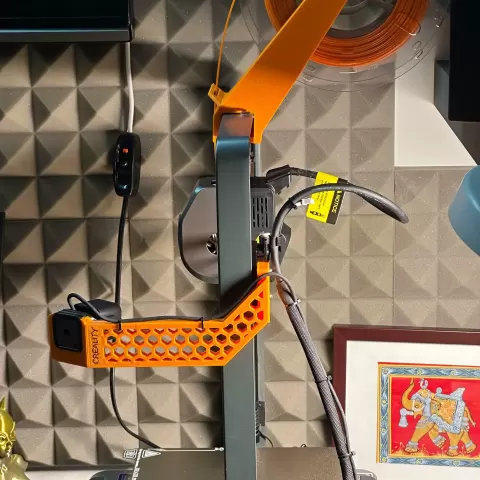

Third design and hopefully last ;-)Bought the Nebula camera for the Ender 3V3 and wanted to have a holder that moved together with the Z-Axis. So it can monitor what happens at the nozzle. See picture. As I have printed the top loader filament holder (its one of the files on the thumb drive that comes with the machine), the filament sensor is not used anymore. Which gives nicely two mounting holes.Two earlier designs were to short and the head got in front of the nozzle or the angle was just not right. This bracket does just the right job for me.Printing:Can use any of your available material. I printed in PETG, which is a bit flexible. But PLA or ABS should work as well (maybe better as it is more stiff). Print at 0.2 layer height as there are 2 mounting holes that need to fit an M3 screw.Assembly:I removed the filament sensor, but if you find long enough screws it may work with the filament sensor still attached. I would not advise it though. 2 standard M3x14 with a washer to mount it on where the filament sensor was removed. The Nebula camera will fit click into the holder. And I connected the cable with tie-raps on the Z-axes cable.Good luck!
