Killerbody Toyota LC70 Overland body for 1/10 crawler with 313 mm wheelbase

Description

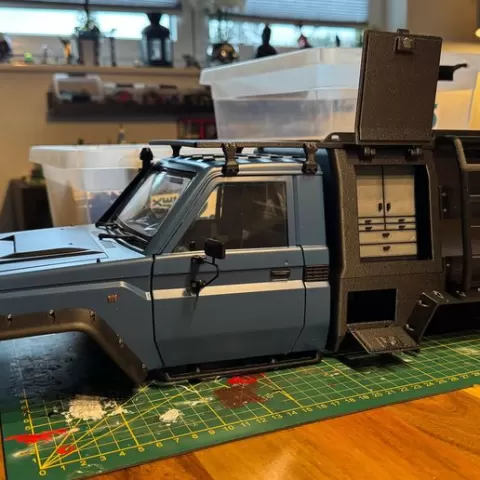

Here I’m sharing my overland body kit for the LC70 Killerbody with a 313 mm wheelbase. I mounted this on an SCX 10 / I Dingo with a 313 mm wheelbase. All the flaps can be opened and fitted with magnets; holes are provided in the flaps for this purpose. I then glued small metal plates to the corresponding parts to hold the magnets. Holes are provided on both sides of the body for the ladder. The Killerbody taillights, which come with the Karo, fit into the openings for the taillights. Even the license plate light could be equipped with a 3 mm LED. For the cargo area, you’ll need a 250 x 250 mm print bed, since it consists of a single piece. If you don’t have one, you could also split the cargo area in the slicer. For Axial SCX10 I / II with fenders For Boomracing BRX01 without fenders Tire size up to a maximum diameter of 100 mm The following accessories are required for construction M3 screws in various lengths M1.4 screws in various lengths Neodymium magnets, 6 mm in diameter and 2 mm thick It’s best to get a well-stocked set of M3 and M1.4 mm (from the SCX24) screws. I’ve included pictures from all angles, which should make assembly straightforward.
