easy print strong structural truss
- 18 views
This model is hosted on Cults3D. Files, images and license details belong to the original creator.
View on Cults3D ↗Description

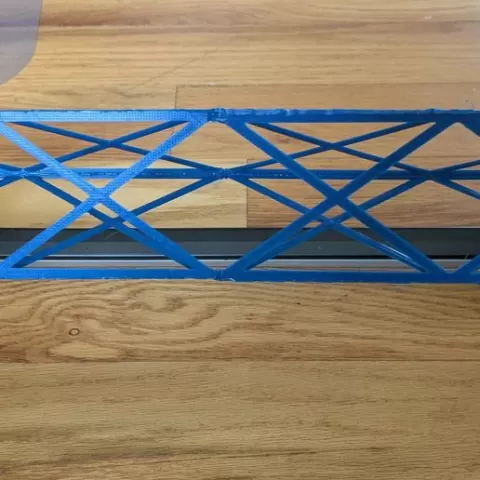

easy print structural truss each segment is made from three identical sides, weighing a total of 18g per segment. vertical load rating (PLA): 22lbs (10kg) with a >2x saftey margin When I tested a segment printed in standard PLA with a weight of 18g (0.039lb), it withstood 47lbs (21Kg) vertically before buckling, and returned to it's original shape after removing the load. Q: why three parts per segment? A: this allows it to be printed flat, this improves the strength and print time significantly. Q: how do I assemble the parts and segments? A: with CA glue, or plastic welding them together with a soldering iron. (instructions provided)
About this model
easy print strong structural truss is a free 3D model in the Other category, shared by the Cults3D community. You can download it for 3D printing and reuse it in your own projects under the terms of its original license.
File formats
- STL — The most common mesh format for 3D printing — ready to slice and print on almost any printer.
The files for this model are hosted on Cults3D. Use the button above to open the original page and download it.
