MP-40 Handguard

Description

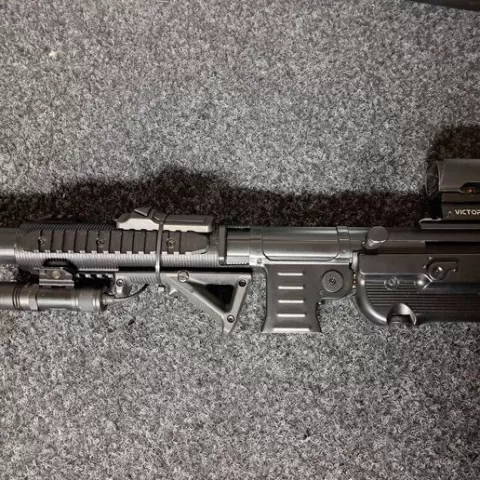

Handguard with picatinny rails for the AGM made MP-40. – Installation- Strip the barrel by removing the front sight, muzzle, and the wedge under the barrel. The model uses M4 countersunk screws for rail installation, with one slot reserved for an M4 socket screw for additional firmness. Use the last hole in handguard part 2 as a marker for drilling and creating the M4 thread. For clearance, all long rails have a slot where the top of the socket screw sits. Remember to remove the inner barrel before drilling. Handguard 1 is screwed onto the pre‑existing barrel thread. If the rail slots misalign too much, loosen the handguard and start again from a different orientation. This usually reduces the tightness and allows proper alignment. Rails are installed last. Due to barrel being curved some of the end screws may need be shortened right under 10mm.
