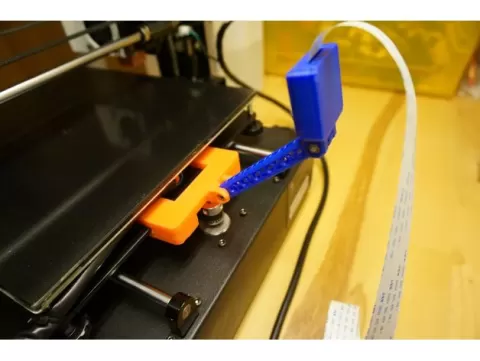

Anycubic I3 Mega raspberry camera holder
- 22 views
This model is hosted on Thingiverse. Files, images and license details belong to the original creator.
View on Thingiverse ↗Description
Raspberry camera mount for an Anycubic I3 MegaFor me, a camera mount should meet the following requirements:Mounting on the bed so that octoprint time recordings always show the same positionCentral mounting on the bedeasy assembly (without disassembling any parts from the printer) Looking for a camera mount, I saw the following good solution:http://www.thingiverse.com/thing:2854575To use that on an I3 Mega, only the connection to the printer must be re-created.The holder on the printer is only clipped on. Sheet metal screws (tapping screws) are mounted from below to fix the holder. Holes in the printer are not required.Support is only required for the holder on the printer.required screws:2 x M3 16mm incl. nuts2 x tapping screws 2,9mm x 6.5mmUpdate 25.02.2019:There are probably also older I3 Mega with a 3mm baseplate intead of a 4mm one.Therefore I created another version of the holder (i3-mega-board-holder-3mm.stl).Tip - The Raspberry camera can be very well focused with the following tool:http://www.thingiverse.com/thing:1941802
