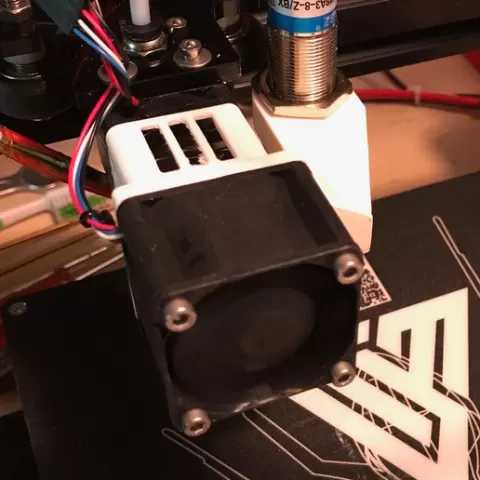

JeSc Tevo Tarantula Layer Fan with 18mm sensor
- 20 views
This model is hosted on Cults3D. Files, images and license details belong to the original creator.
View on Cults3D ↗Description
Made both fan ducts using http://www.thingiverse.com/thing:1591912 by sobezuki, published May 27, 2016 And the 30-40 version I also used http://www.thingiverse.com/thing:1759396 by Galane, published Sep 8, 2016 I added an 18mm inductive sensor holder as an upgrade Print both in ABS, because it is very close to the hot end and PLA will melt! OFFSET SENSOR: Y offset = 0 X offset = 40 Z offset = up to you ;) Adjust Marlin firmware configuration.h (approx. line 604-605) define XPROBEOFFSETFROMEXTRUDER 40 // X offset: -left +right [of the nozzle] define YPROBEOFFSETFROMEXTRUDER 0 // Y offset: -front +behind [the nozzle] The 30-30 version needs as additional parts: 1x Cooling fans 30x30x10mm 4x Bolds m3x50 The 30-40 version needs as additional parts: 1x Cooling fan 40x40x10 or 40x40x20 4x Bolds m3x50 to attach fan duct 4x Bolds m3x20 or m3x30 to attach 40x40mm fan
