ANT ZOETROPE - Bicycle

Description

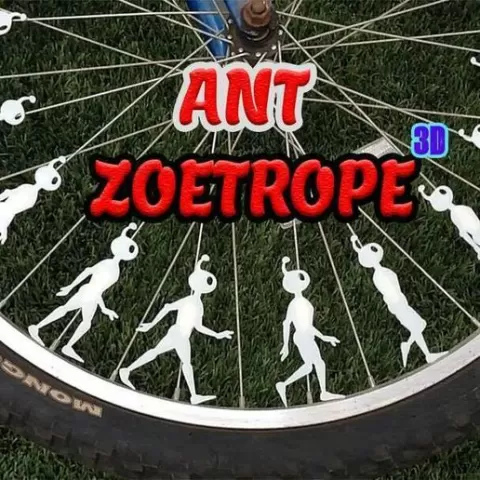

This design turns your bike wheel into a zoetrope!* It was designed for 18 spokes (on one side of the wheel. There should be 36 spokes altogether), with two cycles of the full animation. The files included are robotbody 1-9, and two sets of clips to attach them to the spokes; one for 3.5mm wide spokes, and one for 2mm wide spokes. Measure the diameter of your bike spokes first before you start printing, so that you know which set to use. You will also need some heavy duty glue to attach the bodies to the spoke clips. The robot bodies are 4.25" tall, and 2mm in thickness, so they should fit on most printer platforms. Print out 2 each of robotbody1, robotbody2, robotbody3, robotbody4, robotbody5, robotbody6, robotbody7, robotbody8, and robotbody9. I printed mine at .35, half with rafts and half without, on my Up Mini printer in ABS. I recommend numbering each print on the back as they come off the machine, so that you can easily access the right pieces for the cycle when it comes time to attach them. You will most likely need exactly 18 of the long bike clips in either 3.5 or 2mm, but you might wish to use the short clips instead, because they're a little easier to snap onto the spokes. In that case I would print 36 of them, to give the bodies at least two points of attachment. For the bike clips, I printed them at .2, using fine quality, and I put rafts on mine to help with warping, but you might be able to do without. It's important to print them at the best resolution you…
