Component Lead Bender Caliper
- 12 views
This model is hosted on Cults3D. Files, images and license details belong to the original creator.
View on Cults3D ↗Description

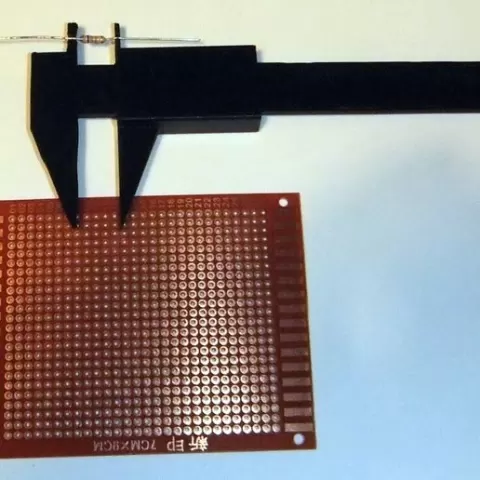

This is modeled after a tool that I saw in an old 1960's electronic hobbyist magazine the other day, with a few slight improvements. Component lead bending tools are nothing new on here, but this adds a level of precision to your bends. Simply place the points of the caliper in the two holes in to which you are going to install your component, place the part in the middle of the gap on top and bend the leads around the edges. For extra precision you can install a screw in the hole on top of the slide. Then, you can tighten down the slide so it can't move while you bend your leads. No more guessing how far apart you need to bend the legs of your resistors or any other axial leaded discreet component.
About this model
Component Lead Bender Caliper is a free 3D model in the Other category, shared by the Cults3D community. You can download it for 3D printing and reuse it in your own projects under the terms of its original license.
File formats
- STL — The most common mesh format for 3D printing — ready to slice and print on almost any printer.
The files for this model are hosted on Cults3D. Use the button above to open the original page and download it.
