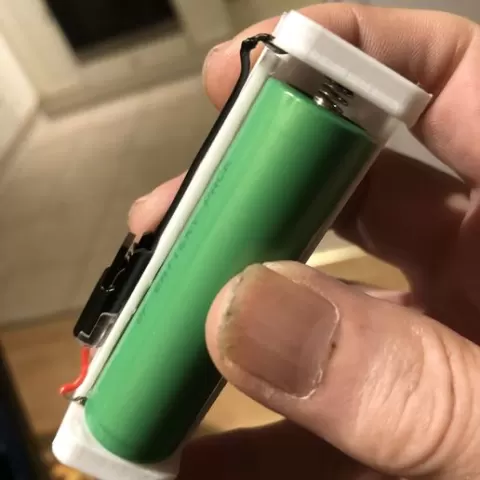

I'm a huge fan of modular design. I have already printed 5 of these holders with the terminals connected, soldered and the power connector attached. Any project in the future will use this design. I just need to leave enough space to glue this in and connect the power lead. Space: It is 22mm wide (3.5mm wider than the battery) and 80mm long (15mm longer than the battery). It is a reasonably tight fit so shaking it does not dislodge the battery. Components: Terminals - from AliExpress https://www.aliexpress.com/item/1005005840724550.html?spm=a2g0o.orderlist.orderlist_main.97.4cd01802Wjmm2F Connectors - from AliExpress https://www.aliexpress.com/item/1005007316758503.html?spm=a2g0o.orderlist.orderlist_main.216.4cd01802Wjmm2F Batteries - from AliExpress https://www.aliexpress.com/item/1005008499604962.html?spm=a2g0o.orderlist.orderlist_main.181.4cd01802Wjmm2F
