Drill Guide
- 17 views
This model is hosted on Creality Cloud. Files, images and license details belong to the original creator.
View on Creality Cloud ↗Description

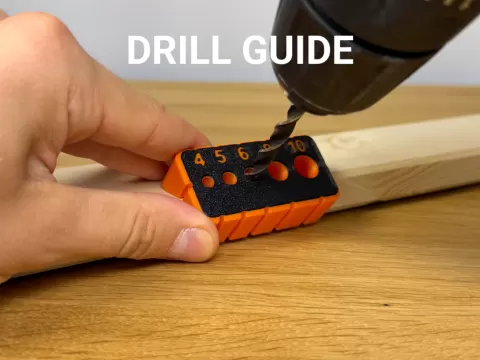

Boost me if you like my design. Thank you!Boost MeBoost = 43 g of filament :)BoostA compact drilling guide designed to help you drill accurate holes quickly and consistently.The guide includes holes for 4, 5, 6, 8, and 10 mm drill bits, with a separate imperial version also available.Each hole is aligned with engraved center marks on the outer sides of the guide. Simply mark a cross on your workpiece, align the engraved marks with the lines, and drill exactly where intended.The underside features a 90° V-groove, allowing the guide to sit securely on:Flat boards45° cornersRound stock, pipes, rods, and dowels
About this model
Drill Guide is a free 3D model in the Other category, shared by the Creality Cloud community. You can download it for 3D printing and reuse it in your own projects under the terms of its original license.
File formats
- STL — The most common mesh format for 3D printing — ready to slice and print on almost any printer.
The files for this model are hosted on Creality Cloud. Use the button above to open the original page and download it.
