Ender 5 Max Bowden Mount

Description

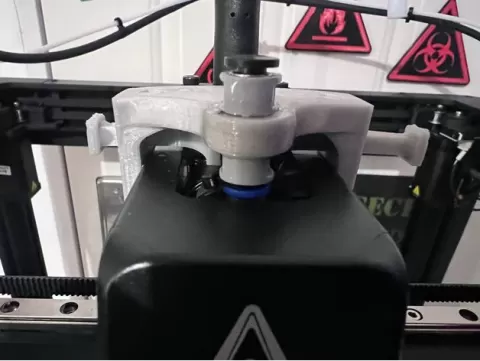

This is a remix of ComeOnMacGyver's Bowden tube mount for the E5M. The tube is known to pop out on the extruder when running on an Infinity Flow. ComeOnMacGyver's design is quite excellent, but I wanted to remix for those who don't have all of those heating tools / parts. I simply enlarged the hole on the "extruderbox" thing and split off the front. Added graphics / directional arrows, as well. Place a Bowden tube coupler (link below) and epoxy it in as well as the front (be sure the coupler is facing the correct way - black top / blue bottom!). Print in a strong material if using a heated tent.After it's dry and ready to be installed, place 17mm of Bowden tube at the bottom and use a tiny zip tie (or a Bowden clip). Hook it all up.SPECIAL NOTE:To get this to fit better on the extruder, the screws should be thus:x2 M3-12mm (top)x2 M3-8mm (bottom)Coupler: https://www.amazon.com/YIBEICO-Connectors-Printer-Accessories%EF%BC%8CPlastic-Engraving/dp/B0DD6ZHPX8
