Digital Faceting Angle Indicator by Nathan
- 11 views
This model is hosted on MyMiniFactory. Files, images and license details belong to the original creator.
View on MyMiniFactory ↗Description

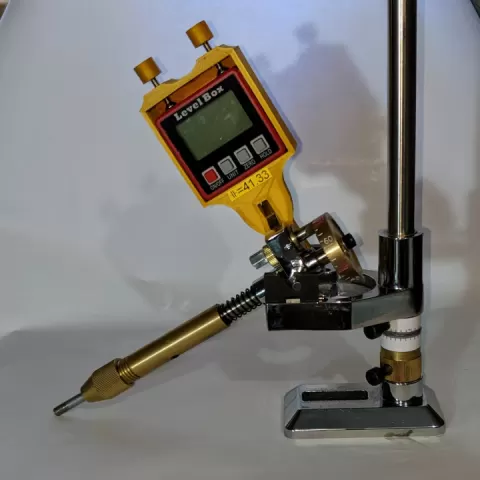

Faceting Machine Digital Indicator Fits "Jade Facet Manipulators" as shown in thumbnail.Use heat to fit indicator to manipulator arm.Requires two #8-32 nuts and bolts and inclinometer. Using calipers the indicator can be zeroed by calculating the distance between the quill and steel support rod while parallel.Mine ends up being 43.11mm but you should measure you're own device for best results. Printed with PLA at 0.2mm layer height. No supports. MyMiniFactory: https://www.myminifactory.com/users/GoldenRatioThingiverse: https://www.thingiverse.com/golden_ratio/designs Version 1.00NT 2020 | Download free and paid 3D printable STL files
About this model
Digital Faceting Angle Indicator by Nathan is a free 3D model in the Animals & Creatures category, shared by the MyMiniFactory community. You can download it for 3D printing and reuse it in your own projects under the terms of its original license.
