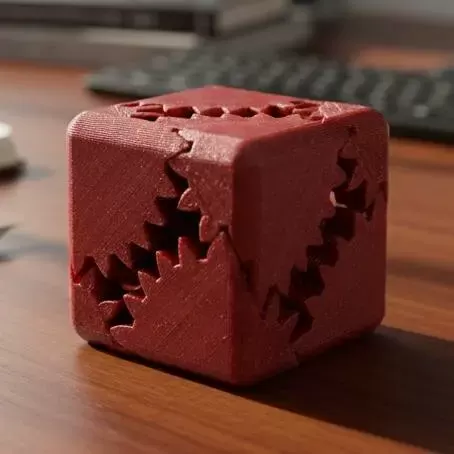

Ur's Expected Gear Cube - V Design

Description

Design ConceptThis model is designed with a rational mechanical structure that combines functionality with visual appeal. The internal geometry has been carefully optimized to provide smooth movement, structural strength, and long-term durability. At the same time, the outer form maintains a clean and balanced aesthetic, making the model both practical and visually engaging.Print SettingsRecommended Printer: Creality K1Material: PLALayer Height: 0.10 mmInfill: 20%Supports:10% densityOnly required on panel tabs60° support angle for easy removalOuter Shell: No supports requiredBed Adhesion: Brim recommendedEstimated Print Time: ~3 hoursThese settings provide a good balance between surface quality, strength, and print reliability.Assembly InstructionsAlign all printed components, including gears, panels, and connectors.Fix the parts together using 2.5 mm screws (2 cm length).Ensure proper alignment of the internal gear system before final tightening.Insert the assembled mechanism into the outer shell slots.Check that all gears rotate smoothly and adjust screw tension if needed.No glue is required. Assembly is simple and suitable for beginners.
