250ml can 3d printer frame by stephen

Description

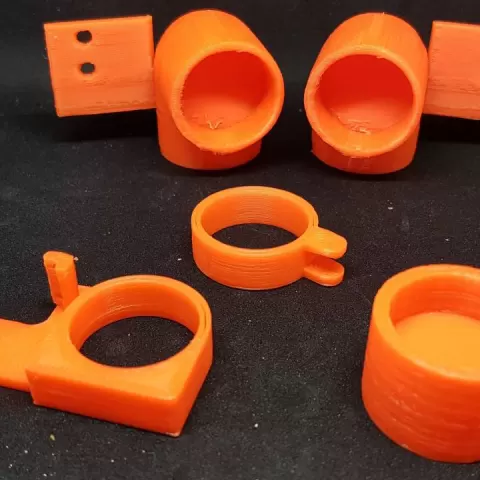

250ml can 3d printer frame. Want to have the most ghetto 3d printer possible? Well here is 3d printer frame made out of 250ml drinks cans. Warrning! This is not for those who are new to 3d printing, nor should be the first or only 3d printer. Bill of materials 1x part 1 left 1x part 1 right 1x part 2 left 1x part 2 right 5x part 3 1x part 4 left 1x part 4 right 1x part 5 1x part 6 Parts to source list 12x 250ml cans preferably empty 100K BTC with cable 12V 20A power supply A4988 driver x4 Arduino Mega 2560 clone Mechanical endstop boards x2 RAMPS 1.4 Reprap 14pcs wire set Reprap heated bed aluminum 1.2mm Extruder springs (pack of 10) 2x4mm bowden tube 50mm radial fan 5V M8 inductive sensor 625 bearing pack of 10 E3D v6 Jhead with fan and thermistor Hobbed gear 2.5x100mm zip ties x100 5x5mm flexible coupler x2 8mm smooth rods, 320m, 330 or 350mm, 370mm 2 of each GT2-2M 16T idler pulley, 3mm bore x2 GT2-2M 16T pulleys, 5mm bore (set with belt) x2 GT2-2M 6mm belt (often just called "GT2") (set with pulleys) 2m LM8UU bearings x10 NEMA17 stepper motor x5 M5 threaded road 1m X-axis assembly recommend the one made by Thomas Sanladerer for his cheep i3 mk2 clone project, this can be found on his web site. Y-axis belt holder, again recommend the one from Thomas Sanladerer. Y-carriage, you can be buy this off any number of sites, but you are making a 3d printer out of cans, Thomas Sanladerer has a PDF of the Y-carriage on his website, download and cut out of scrap wood, it will fit…
