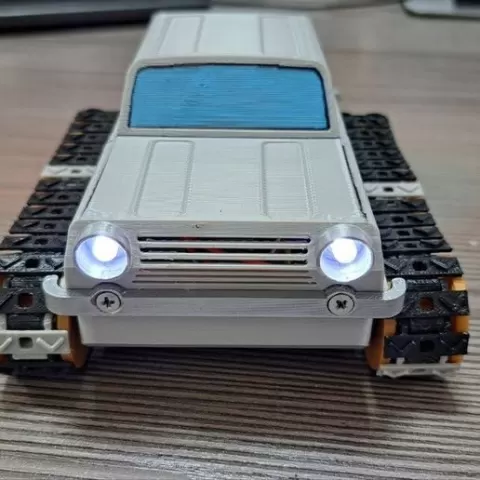

"Beast" - a small tracked RC vehicle.

Description

The model contains only 9 unique parts. It does not have complex moving joints, so the assembly is very simple. You need to print: - body-bottom.stl x 1 - body-top.stl x 1 - bumper.stl x 2 - driveroller.stl x 2 - motor-holder.stl x 1 - roller.stl x 4 - rolleraxle.stl x 4 - shelf.stl x 1 - track_part.stl x 64 I used PETG and printed with a layer thickness of 0.24 mm without infill. For assembly you will need: - countersunk flat head screw M3 10 mm x 14 - countersunk flat head screw M3 20 mm x 1 - motor with gearbox GA12-N20 (6 or 12 Volts) x 2 - two-channel speed controller for DC motors 2-3S x 1 - white LED TZT 5 mm x2 - red LED SMD x2 - plastic micro switch with 3 pins and 2 positions х 1 - 18650 Li-Ion battery x 2 or 3 pieces depending on the selected motors - holder for 18650 batteries for 2 or 3 batteries depending on the selected motors - radio transmitter and receiver
