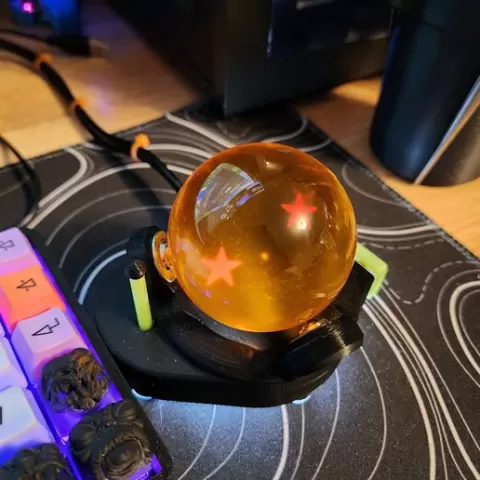

Ploopy Nano Button Mod

Description

Inspired by @diitsuku_195234’s great mod here: (https://www.printables.com/model/308046-2-14-inch-pool-ball-ploopy-nano-btu-mod). This is a custom case to add a separate Teensy 2.0 board for additional buttons and RGB. This was a proof of concept; it’s a tight fit for all the wiring and you’ll have to drill a hole for the RGB to passthrough if you add it. You will need to dial in the joystick depending on your printer. You want a little bit of elephant’s foot to lock it in place. You may also need to play with the scale or sand a bit. I included some sample code, the wiring on the switches is pin B0-D1 with a common ground, RGB control is D2. I’m in the process of converting this to QMK. Good luck with the build and post a make! Hardware: Ploopy Nano pcb and lense Teensy 2 or comparable board M3 screws and heat inserts X2 Choc Switches X3 2 ¼" ball BTU X3 – https://store.livhaven.com/r053010810-bosch-rexroth-ball-transfer-unit Joystick switches - https://www.amazon.com/dp/B0CMQ6MBC1?ref=ppxyo2ovdtbfedasintitle
