Printbox Mark I

Description

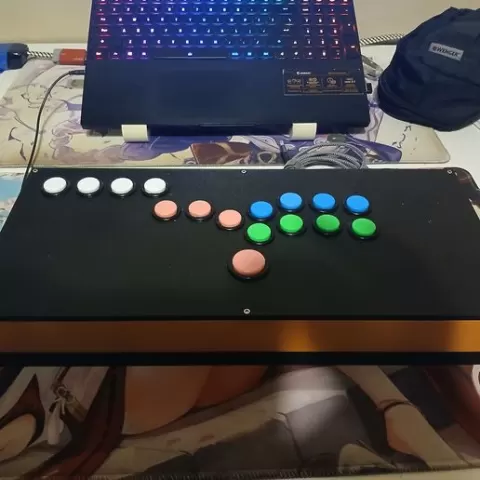

The printbox is my little experiment on creating a hitbox controller. The layout I used was the same as the hitbox, but I made sure it fit in my Elegoo 3D Max. For this layout I used one 30mm button and the rest were 24mm. All my buttons are seimitsu, but the layout should have enough tolerance for all standard snap-in buttons. You will need 4 M3x6mm bolts for the PCB board and 6 M3x12mm bolts for the lid. The base needs to print with support so that the hole for the USB-B cable can print safely. My next attempts will be focused on creating a lid for an arcade stick, a modular or detachable controller and having a different design. Feel free to use this design for your diy controller, or if you want it made you can contact me to discuss pricing. PS.: Don't mind the dual colors I ran out of black filament.
