HO Scale Piggyback Flatbed Locking Ramps
- 17 views
This model is hosted on Cults3D. Files, images and license details belong to the original creator.
View on Cults3D ↗Description

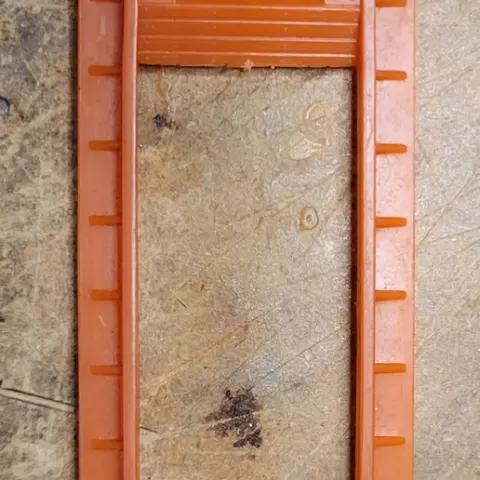

I have a few Tyco and Athearn flatbed cars that carry short Santa Fe piggyback trailers. Some of the locking ramps were missing. I designed these to replace them. In the pics is an original ramp (orange) that came with the cars. Mine are the PLA MAX grey ones I made to replace the missing ones. The original ramps had pins on the bottom to lock into the stake holes in the bed. I didn't attach them to mine because I was afraid the bottom wouldn't stay flat while printing. I measured and drilled (4, 2 on each end) 1mm holes through the ramps. I then cut & glued Evergreen StripStyreene # 132 into the holes and glued them to the ramp from the top with med density Gorilla Super Glue. Once the glue hardened (I waited till overnight), I then cut off the connecting tab shown in the 6th & 7th pics. After a little sanding and paint, they shouldn't even be noticeable.
About this model
HO Scale Piggyback Flatbed Locking Ramps is a free 3D model in the Other category, shared by the Cults3D community. You can download it for 3D printing and reuse it in your own projects under the terms of its original license.
File formats
- STL — The most common mesh format for 3D printing — ready to slice and print on almost any printer.
The files for this model are hosted on Cults3D. Use the button above to open the original page and download it.
