Miata NB Intake Manifold DBW Adapter
- 12 views
This model is hosted on Cults3D. Files, images and license details belong to the original creator.
View on Cults3D ↗Description

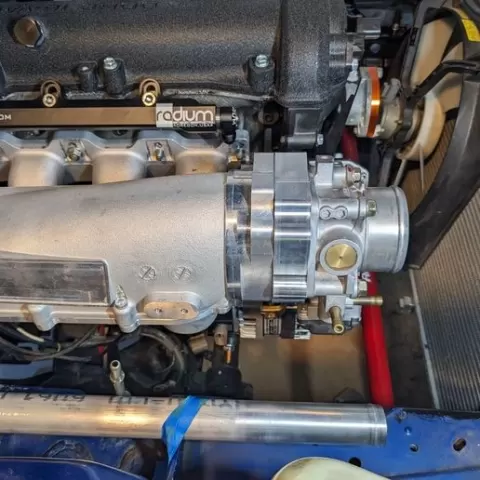

Adapts a 60mm Keihin DBW throttle to a NB Miata Intake Manifold. Readily available part found on the Honda 2.0L turbo engines (K20C* variants) found on the Accord, RDX, TLX, Civic, etc. Shown on a Junk2 inmani, but I modeled it using the common flat/square top inmani. The Junk2 does have a lot more room, but it fits with the flat top and stock NB fuel rail. You will need to use a K24A2 DBW paper gasket to seal the DBW to the adapter and use a standard Miata throttle body gasket between the inmani and the adapter. I ended up getting this CNC'd out of aluminum, since I didn't want to deal with strength and porosity issues with FDM printing.
About this model
Miata NB Intake Manifold DBW Adapter is a free 3D model in the Other category, shared by the Cults3D community. You can download it for 3D printing and reuse it in your own projects under the terms of its original license.
File formats
- STL — The most common mesh format for 3D printing — ready to slice and print on almost any printer.
The files for this model are hosted on Cults3D. Use the button above to open the original page and download it.
