DF65 Rudder Angle Tool
- 27 views
This model is hosted on Thingiverse. Files, images and license details belong to the original creator.
View on Thingiverse ↗Description

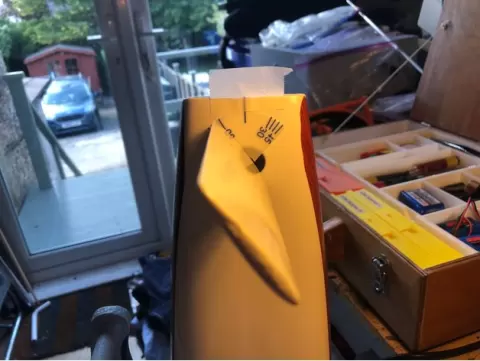

Realised my DF65 was turning wider to Starboard than Port so needed to change the end points to set the rudder movement the same in either direction. Created this simple tool. It slips in to the rudder pivot, lines up with the backstay attachment and then held in place temporarily by a piece of tape. Allows you to set the rudder angle the same both sides. The marks are for 30, 35, 40 and 45 degrees.The model is only three 0.2 layers thick - colour change for the last layer.
About this model
DF65 Rudder Angle Tool is a free 3D model in the Tools category, shared by the Thingiverse community. You can download it for 3D printing and reuse it in your own projects under the terms of its original license.
File formats
- STL — The most common mesh format for 3D printing — ready to slice and print on almost any printer.
The files for this model are hosted on Thingiverse. Use the button above to open the original page and download it.
