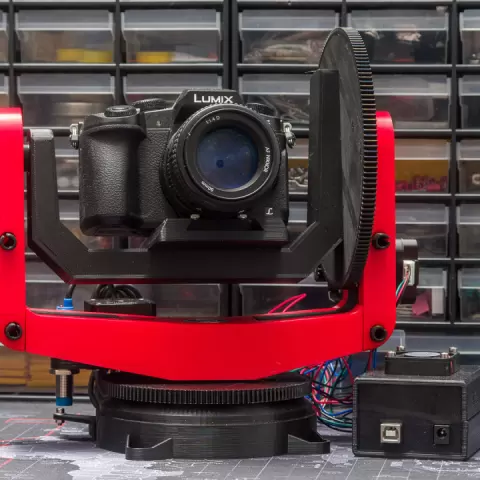

Arca Swiss mounting plate & mechanical end-stop gear for fhuable's motorised gimbal by John Aldred

Description

These parts are to add support for the Andoer CL-70N Arca Swiss compatible tripod plate and to be able to add a mechanical end-stop switch to the 160-tooth gear for fhuable's excellent motorised gimbal. There's also a small washer in here to help raise the pan arm assembly up slightly from the gimbal base. **You will need to download fhuable's files first, these are just my modifications** Printed with Eryone PLA+ on the Snapmaker 2.0 A350. Here's Part 1 of the assembly guide Part 2 coming soon covering the electronics and software... And here's the live stream where I created these parts in Fusion 360 based on fhuable's original design. | Download free and paid 3D printable STL files
