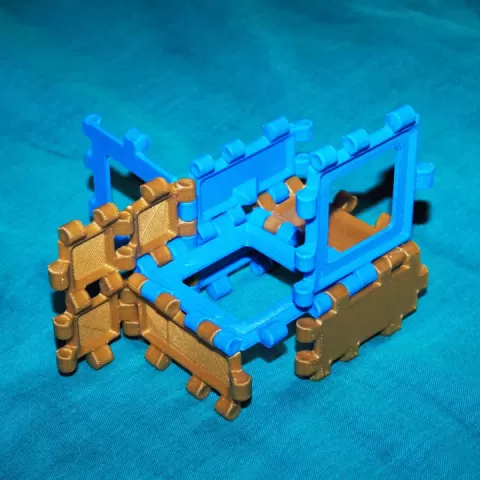

Polypanel System V3 by Brien Allison

Description

This system has now been superceeded by a new design (again) Omnipanels. Overview This was my second redesign of the polypanel connector system, originally made by Devin Montes. Combined with Internal Panels, you can produce stronger and more complex structures. This improves on the original system by adjusting the spacing between the two snap connectors. This allows more panels to fit together in more positions, including half and quarter panels. An extra connector space has been added between the two standard snaps, this allows three panels to be joined at an edge using 'Internal Panels'. There are also 'Centre Joint' and 'Double Centre Joint' panels which have extra connectors for further reinforcing structures. Parts All the standard shapes from the original system are included: square, triangle, rhombus, trapezium, hexagon, and pentagon. They are available in four different types, ordered by increasing strength: open, solid, Vopen, and Vsolid. There are also some special types of panel listed below: Half A/B Half a square panel. The 'A' variant has snaps at each end which will match up with standard adjacent panels. The 'B' variant does not have the end snaps, useful in situations where the ends of an 'A' panel do not match with adjacent panels. Half-adapt A/B Since these panels are not compatible with the standard panels, I have included these half adaptor panels. The A/B variants add/remove the end snaps as above. Half-flip Sometimes the connectors can be flipped and…
