Drawing Machine Gears
- 8 views
This model is hosted on Cults3D. Files, images and license details belong to the original creator.
View on Cults3D ↗Description

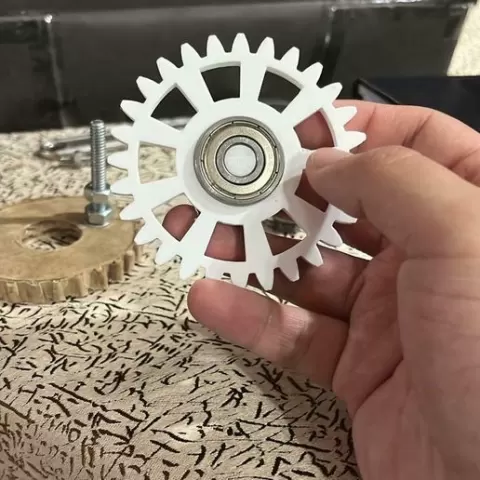

They are the gears of the drawing machine of the video https://www.youtube.com/watch?v=l7kW7qSqeKQ, as an alternative to make them out of cardboard, and to be able to have a template. The gears have a thickness of 5 mm, however in the attached documents are the PDFs with the plans to be able to print them in a traditional printer, draw them and make the cut in cardboard. The gears are designed for a 629-Z bearing. With an internal clearance of 26 mm. If you do not want to use a bearing you have a 26 mm part with a 6 mm internal hole for an M6 bolt to function as an axle.
