Screw extruder for Prusa I3 - Estrusore a vite per Prusa I3 by Davide Dalfiume

Free STL Other

11 views

This model is hosted on MyMiniFactory. Files, images and license details belong to the original creator.

Description

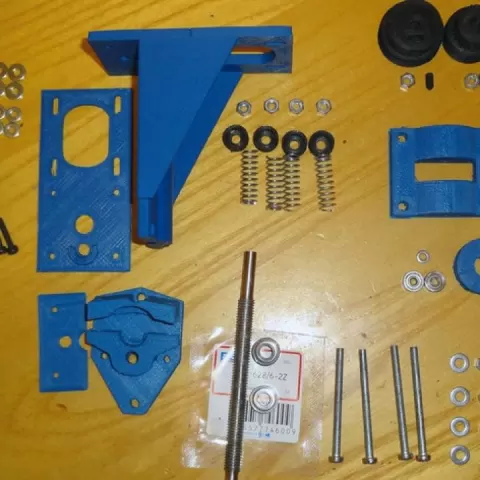

Estrusore a vite con supporto per il montaggio su Prusa I3Screw-driven extruder with sidemount motor for PRUSA I3 (Italiano)BOMN. 4 viti M4X50N. 10 dadi M4 normaliN. 4 dadi M4 autobloccantiN. 4 rondelle foro 4 mm.N. 6 dadi M3 normaliN. 2 dadi M3 autobloccantiN. 3 rondelle foro 3 mm. ridotteN. 6 rondelle foro 3 mm. normaliN. 4 rondelle foro 3 mm. maggiorateN. 1 trafila M3X50N. 2 grani M4X6N. 4 viti M3X20 testa brugolaN. 4 viti M3X15 testa brugolaN. 2 viti M3X25 testa brugolaN. 4 molle diametro esterno massimo 8 mm. filo 0.8-1 mm. lunghe 25 mm.N. 2 cuscinetti foro 3mm. diam. esterno 10mm.N. 2 cuscinetti 628/6 - 2Z (SKF)N. 1 cinghia T2.5 X 160 mm.N. 1 barra filettata acciaio inox M8 passo 1.25 lunga 110 mm. tornita ai terminali (scasso inferiore diametro 6mm. X 6 mm. lunghezza, scasso superiore diam. 6mm X 25 mm. di lunghezza, deve rimanere una parte filettata di 79 mm.) Parti stampateTutte parti singole tranne 4 portamolla.stl (English)BOMN. 4 - M4X50 screwsN. 10 - M4 normal nutsN. 4 - M4 locknutsN. 4 - 4mm washersN. 6 - M3 normal nutsN. 2 - M3 locknutsN. 3 - 3mm (internal hole dia) smaller washersN. 6 - 3mm (internal hole dia) normal washersN. 4 - 3mm (internal hole dia) bigger washersN. 1 - M3X50 threaded rodN. 2 - M4X6 grub screwsN. 4 - M3X20 hex/Allen screwsN. 4 - M3X15 hex/Allen screwsN. 2 - M3X25 hex/Allen screwsN. 4 - Springs: external dia max 8mm; thread 0.8-1mm; lenght 25mmN. 2 - Bushings: external dia 10mm; internal hole dia 3mmN. 2 - 628/6 - 2Z (SKF) BushingsN. 1 -…
