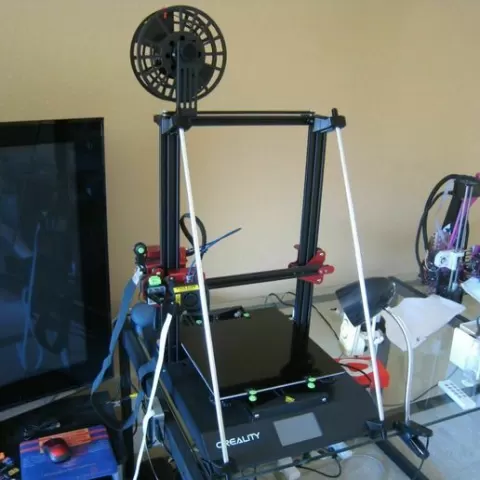

CR-10S Pro Frame Brace (light version) 10mm REMIX

Description

For the Creality CR-10S Pro and the Creality CR-10S Pro V2 only. I have the V2. This is a remix of Anar's CR10-S Pro Frame Brace (light version) (https://www.thingiverse.com/thing:4000797) 10mm bottom frame brackets. IMO, his light version remix was an improvement over the original version (https://www.thingiverse.com/thing:3905499). I added braces to the sides of his bottom brackets to remove the flex Anar had designed into his brackets. My remix of the frame brackets is very stiff and still does not cover the vent slots. The four M3x5 screws that come on the CR-10S Pro are not long enough to mount the bottom brackets. I found M3x8 screws with washers are needed. You will need to get the two Left & Right Frame Top 10mm STL files from Anar's remix (https://www.thingiverse.com/thing:4000797) to complete the mod. Each top brace requires three M3 or M4 T-nuts and screws. Download these two files: FrameTopL_10mm.stl FrameTopR_10mm.stl I have only remixed the 10mm bottom brackets and have no plans to remix the 8mm and 6mm sizes. The 10mm size works well for us in North America, where it is easy to buy 3/8" aluminum rods (https://www.homedepot.com/p/Everbilt-3-8-in-x-36-in-Aluminum-Round-Rod-801657/204273962) of sufficient length. They provide a very snug fit that does not require threads and nuts, though you can thread the rods yourself and add the nuts if you feel it is necessary. The smooth rods have a better appearance than threaded rods, IMO. My rods are cut to 28" in length…
