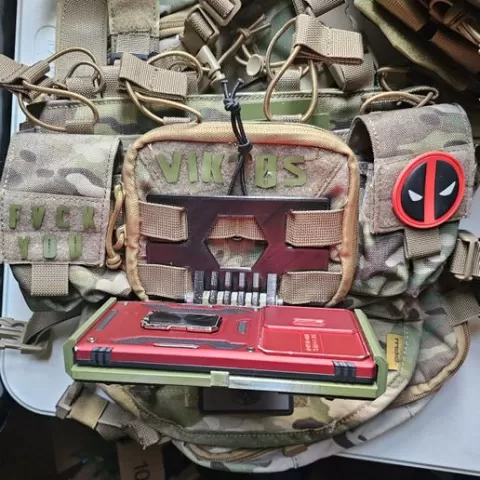

Universal ATAK Mount

Description

Here is the universal version of my previously phone-specific Molle mount. Like the other version, I used some Paracord Shock Cord and a 3" 8-32 Allen head bolt with washers and a nylock nut. The nut is helpful setting the perfect tension on the hinge for your specific preference. On this model, I have used M4 Nylock nuts and bolts (20mm length). These both had 7mm hexs on them. Due to the way I designed this one, it is important to get that part as close as possible, the length of the bolt doesn’t matter as you can just chop the excess off but too short and it won't work. 20mm was what I used because it was available, 25mm would be next best. Condensed Parts List 1x Mount 1x Base 2x Arm 4x Knob 4x M4 Nylock Nuts (7mm) 4x M4 x 20mm (7mm hex head) 1x 8-32 x 3" (Allen head to make it easier) 1x 8-32 Nylock Nut 2x 8-32 Washers Your choice of retention, I used some paracord shock cord but a rubber band would work too.
