Vanquish VS410 Phoenix low CG Mini Servo Mounts/Relocation

Free STL Miniatures

12 views

This model is hosted on Cults3D. Files, images and license details belong to the original creator.

Description

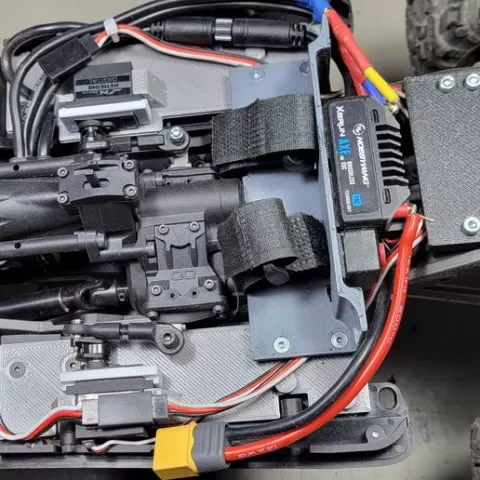

Bring your center of gravity and weight down by installing smaller Dig and overdrive servos and lowering their mounting points. Not to mention making room for a full interior. This set is designed to use the new Mini servos with matching servo savers. like the ones posted just below. Or you can choose the mini servo and saver of your choice. Servos: https://s.click.aliexpress.com/e/_c4Whj3dt Servo Savers: https://s.click.aliexpress.com/e/_c42eK2rZ The servos are fastened using the mounting bracket and secured using some Self Tapping 2mm screws. In the pictures I am using the custom Battery tray designed for smaller 3S 2200mah LiPo packs but the stock tray may be used with slight mods. You will need to make some short links to connect the servo's to the transmission arms. Approximatly 32mm Hole to Hole and the Servo Horn screw size is M2
