Laufrolle - Hörmann - Garagentor
- 11 views
This model is hosted on Cults3D. Files, images and license details belong to the original creator.
View on Cults3D ↗Description

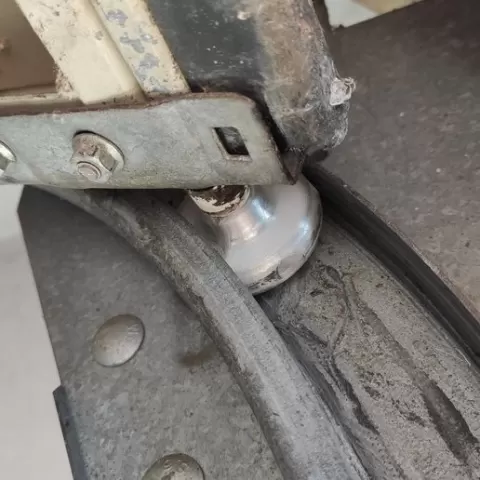

Spare part for roller Hörmann 3007936. The caster is split in two for easy assembly. The following parts are needed: My 3D CAD data: 2x Bolt cover 2x Half-shell roller 2x Nut cover Standard parts: 2x ISO 4762 M3x20 (screw) Lock nuts or standard nuts can be used. 2x ISO 4032/4035 M3 or 2x DIN 985 M3 Glue the caps into the roller with some super glue! Print all parts from TPU Shore 95A. Perfect spare part for old broken rollers. Attention! You buy here only the 3D/CAD model!
About this model
Laufrolle - Hörmann - Garagentor is a free 3D model in the Other category, shared by the Cults3D community. You can download it for 3D printing and reuse it in your own projects under the terms of its original license.
File formats
- STL — The most common mesh format for 3D printing — ready to slice and print on almost any printer.
The files for this model are hosted on Cults3D. Use the button above to open the original page and download it.
