Description

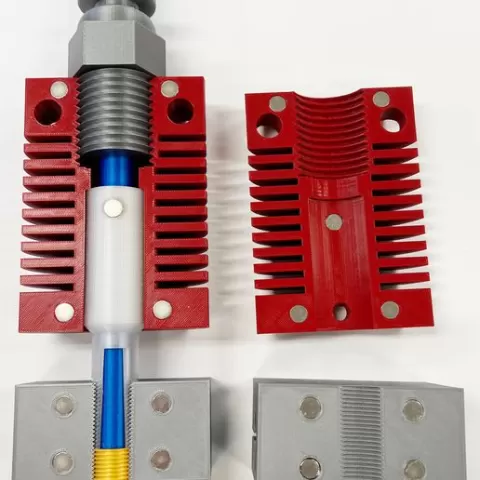

This is a 500% scale of a standard Creality hot end. It is a cross section model held together using magnets. Enables teaching of how the filament runs through the heat sink and into the heat block/nozzle via the bowden tube. A great way to teach others how to troubleshoot clogging issues and heat creep. Uses 10mm x 3mm magnets. I recommend the strong rare earth magnets. Most of them pressure fit for me, but I did have to glue a few in.
