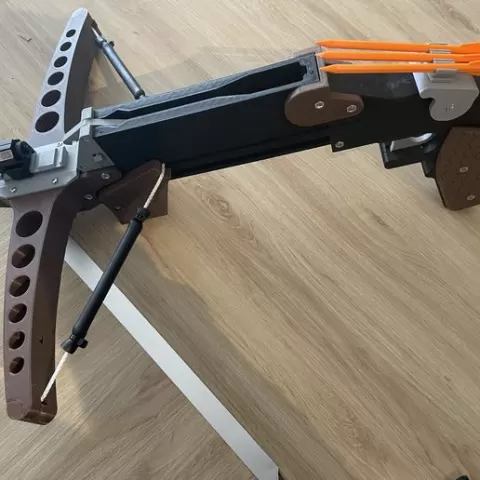

Classic crossbow + NERF

Description

Hello everyone, Today I'd like to present my crossbow, inspired by Legolini's models but entirely modeled and adapted by myself on Archicad software. Quite easy to build and assemble. I made two different shooting bodies to transform the classic arrow crossbow into a NERF dart crossbow. For assembly, you'll need: (see images) -A 30LBS fitness elastic. (Two pieces approx. 11.5cm long) -A classic office rubber band to snap the charger back into place. 10 ø4mm flat-head screws, 40mm long, with nut. 1 50mm long ø4mm flat-head screw with nut. 1 ø4mm flat-head screw, 28mm long, with nut. 2 ø3mm flat-head screws, 28mm long, with nut. 4 ø3mm flat-head screws, 12mm long, with nut. 4 ø3mm conventional screws, 13mm long, to be heated with a lighter and screwed onto the laser holder. 4 ø5.5mm springs, 38mm long. 2 ø5.5mm springs, 20mm long. 4 Colson (plastic collars) 2 Synthetic ropes ø3mm knotted at each end (2x7,5cm finished). 1 Synthetic rope ø3mm knotted at each end (16cm finished). Heat-shrink tubing to protect the rope in the shooting body. Usage: 1- Open reel by lateral pressure, tilt. 2- Load the desired number of arrows (6max). 3- Close the reel. 4- Hold the trigger down. 5- Cock by pulling the rope towards you with the magazine. 6- Release the trigger, the rope remains taut. 7- Aim at the target (WARNING!! never aim at a person.) 8- Pull and repeat WARNING! In its version with classic arrows, this object is for adults and can be dangerous, so do not leave it within the reach…
