RAK 150 Enclosure Mag Mount (Meshtastic)

Free STL Gadgets

18 views

This model is hosted on Cults3D. Files, images and license details belong to the original creator.

Description

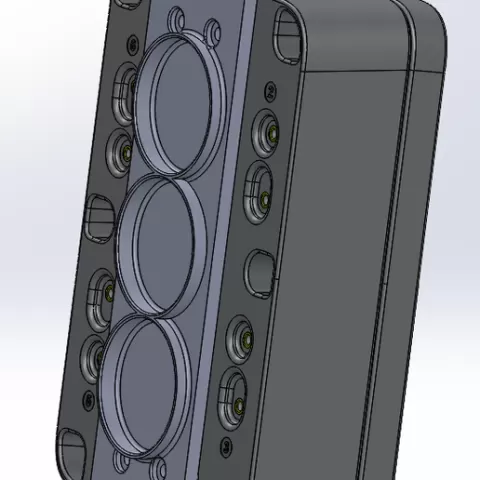

This allows you to attach a mag mount to the RAK Wireless 150mm enclosure. It also provides a 90 deg surface to the top you can drill through, so your antennas stand straight up. I recommend putting some kind of sealant between the top area and the enclosure. Then drill through both to add your antenna mount. This should prevent any leaks. Below are links to the enclosure and the the magnets used. Use JB Weld or similar to glue the magnets in place. RAK 150 Enclosure: https://store.rakwireless.com/products/unify-enclosure-ip67-150x100x45mm-with-pre-mounted-m8-5-pin-and-rp-sma-antenna-ip-rated-connectors?variant=42861623738566 Magnets: https://amzn.to/4gpKubD
