IR & RF Hub
- 19 views
This model is hosted on Thingiverse. Files, images and license details belong to the original creator.
View on Thingiverse ↗Description

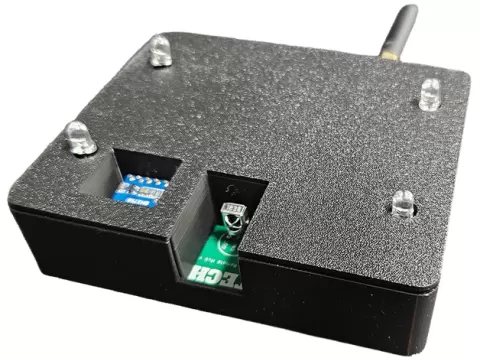

A DIY IR and RF hub using an ESP32 and CC1101 RF module, complete with temperature and light sensors. Integrates natively into Home Assistant via ESPHome. Perfect for automating IR and RF devices without relying on cloud services.Watch the video below for the full tutorial and usage guides:▶️ RF Control in Home Assistant – Clone Any Remote with ESPHome▶️ RF & IR Control in Home Assistant – Trigger Automations with Any Remote | ESPHome▶️ Home Assistant RF & IR Hub – PCB Assembly & 3D Printed EnclosureAll YAML files, configuration instructions, and label templates are available on GitHub:https://github.com/LazyTechGeek/HomeAssistant-RFBill of MaterialsCarrier PCB V1.3 GerbersESP32 Dev Board x1 (38-pin, requires both 3.3V and 5V pins) (pack of 3)CC1101 433MHz RF Module (Choose One)Green PCB Version (Pinout A)Blue PCB Version (Pinout B)2N2222 NPN Transistor x122Ω Resistors x21kΩ Resistor x1Resistor Assortment KitIR Transmitter LEDs x4 (5mm, 940nm)VS1838B IR Receiver x1IR LED & Receiver KitImportant: Component ValuesR1: 1kΩ resistorR2, R3: 22Ω resistorsC1, C2: 100nF (104) ceramic capacitors🧩 PCB FilesOrder from PCBWay
About this model
IR & RF Hub is a free 3D model in the Other category, shared by the Thingiverse community. You can download it for 3D printing and reuse it in your own projects under the terms of its original license.
