NESTOUT Threaded Cap
- 21 views
This model is hosted on Thingiverse. Files, images and license details belong to the original creator.
View on Thingiverse ↗Description

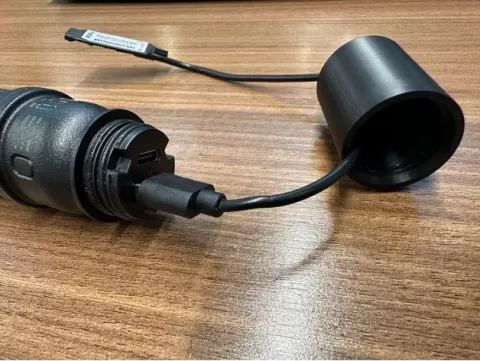

This is a threaded cap for a NESTOUT battery bank, with a hole at the top to allow a USB cable to be permanently threaded through it. This allows for:USB to be installed before installing the capBetter protection against debris and waterThe threads are the most critical part of the model, everything else can be modified to meet your needs. Cap dimensions:Outside diameter = 30.6mmInside diameter = 26.6mmInside depth = 40mmHeight = 42mmTop Hole Diameter = 2.9mmTop filet = 2mmThread details:Diameter = 26.6mmRevolutions = 2Pitch = 2mmAngle = 0Section = Triangular (Internal)Section Position = InsideSection size = 1.3mmOperation = JoinStarts 3mm from edgeStarting point extruded 6mm
About this model
NESTOUT Threaded Cap is a free 3D model in the Other category, shared by the Thingiverse community. You can download it for 3D printing and reuse it in your own projects under the terms of its original license.
File formats
- STL — The most common mesh format for 3D printing — ready to slice and print on almost any printer.
The files for this model are hosted on Thingiverse. Use the button above to open the original page and download it.
