MPCNC Primo Magnetic Dust Shoe
- 12 views
This model is hosted on Cults3D. Files, images and license details belong to the original creator.
View on Cults3D ↗Description

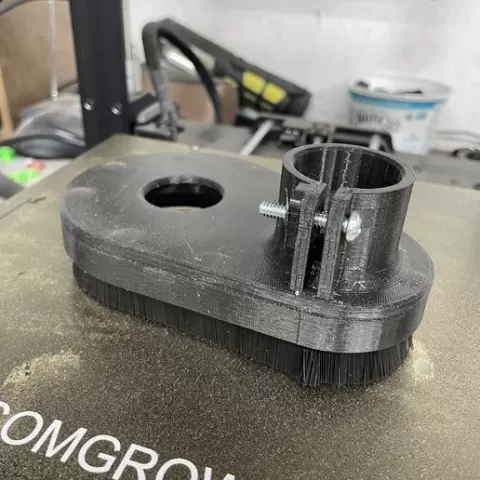

A further iteration of my MPCNC dust shoe, the brush is held on by magnets and pops off easily so you can see the bit for setup. It uses 12x3mm neodymium magnets. The brush is from McMaster-Carr, part #1469N14 7/32"x3/16" with 1" brush. Only $2.02 for 3ft. plus shipping. I did trim the bristles, 1" was unnecessary, 3/4" is plenty. The brush fits nicely in the slot, no adhesive needed. I used CA glue to hold the magnets, be sure to pay attention to polarity. I used the tube from an old vacuum cleaner, about 32mm outside diameter.
